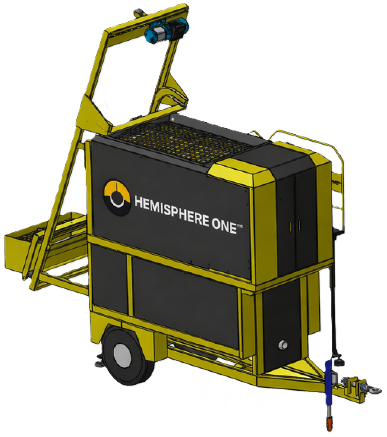

H-516 ECO
PORTABLE BAG MIXER & PUMP
Mixer + Pump + Slurry Collection + Trailer
- Portable Bag Mixer
- Optional Loader
- Towable
- 30m Vertical Pumping lift
- Compact size Optional
- Material Loader
Mobile Batching Plant
Fully automatic batching
Trailer mounted
Slurry Pump
Fully automatic batching
Trailer mounted
Slurry Pump
Technical Specifications
Mixer Capacity
1500 Liters
Loading Limit
1000 Kg
Automation Level
Fully Automatic Batching
Pump Capacity
12 Cubic / Hour
Pumping Range
50 Meters Vertical Lift
100 Meters Horizontal Push
Dimensions
Plant: 3m x 1.6m x 1.6m
Trailer: 4m x 1.8m x 2.1m
Weight
Plant: 2985 Kg
Trailer: 4215 Kg
Power Factor
25 HP / 18.64 kW – 50 Hz – 3 Phasee
